Concrete Lifting & Leveling in Carlyle, IL

Sunken driveway, sidewalk, steps or patio? Foamjection lifts and levels settled concrete in Carlyle with high-density polyurethane foam, through small holes and with no tear-out. Most jobs take a few hours, and the surface is often ready to use the same day.

Prefer to talk? Call 866-913-6519

  • Free, no-pressure estimates
  • Powered by HMI
  • Most jobs ready to use same day
  • Warranty explained before work starts

Common Concrete Problems We Fix Around Carlyle, IL

Driveways and garage aprons that drop at the edges

Carlyle is mostly flat ground, so rain doesn’t run off a lot as fast as it does on a hillside. It sits along the edges of driveways and garage aprons and soaks into the silty soil underneath. After a few wet springs and freeze-thaw winters, the edge of the slab drops, joints open up, and a lip forms at the garage door.

Sidewalk panels that tip or step down

Carlyle has been around since the town was laid out in 1818, and the older blocks have long runs of aging walks. When the soil under one panel gets soft or washes out, that panel drops while the next one stays put, and you end up with a trip hazard right where people walk.

Front steps and stoops pulling away from older homes

Many older Carlyle homes have concrete steps or a stoop at the front door. When the soil under the steps settles, they lean or separate from the house, leaving a gap that lets water run in along the foundation and makes the problem worse.

Patios, pool decks and AC pads near the lake and river

Homes in the low ground near the Kaskaskia River and around Carlyle Lake often sit on softer river silt. Patios, pool decks and AC pads on that kind of soil can sink unevenly, hold puddles, or tilt back toward the house.

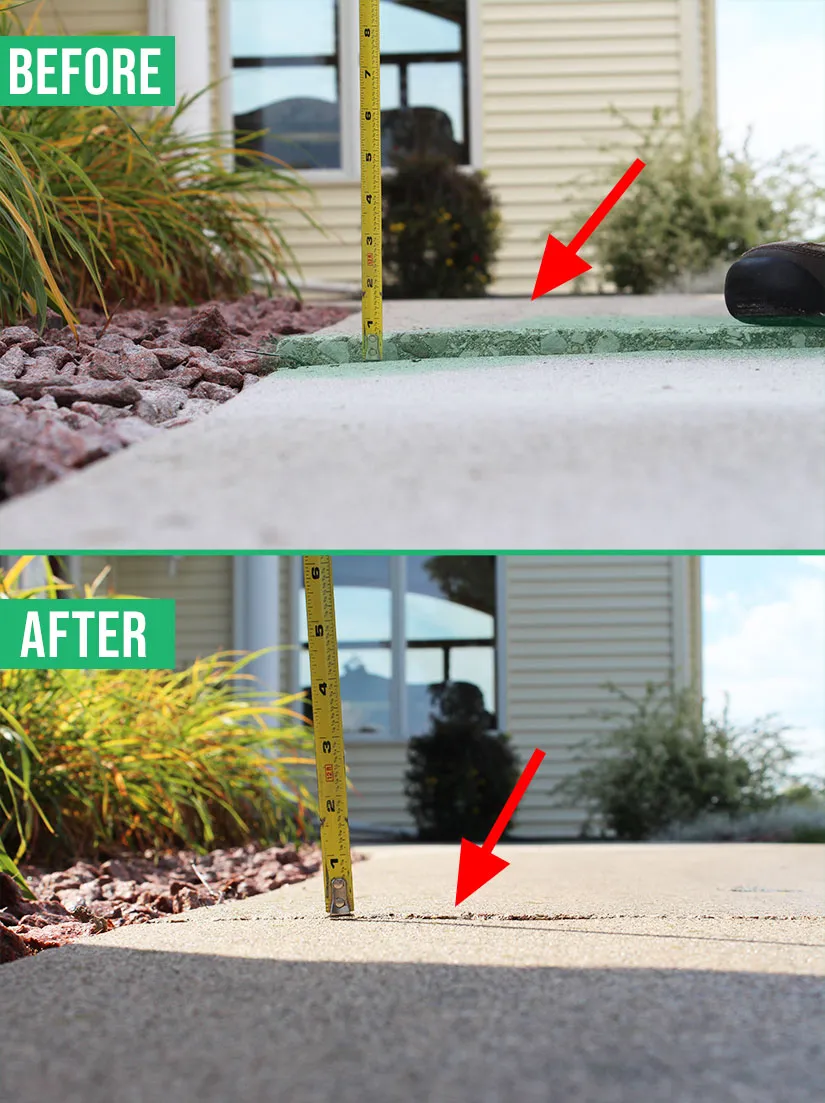

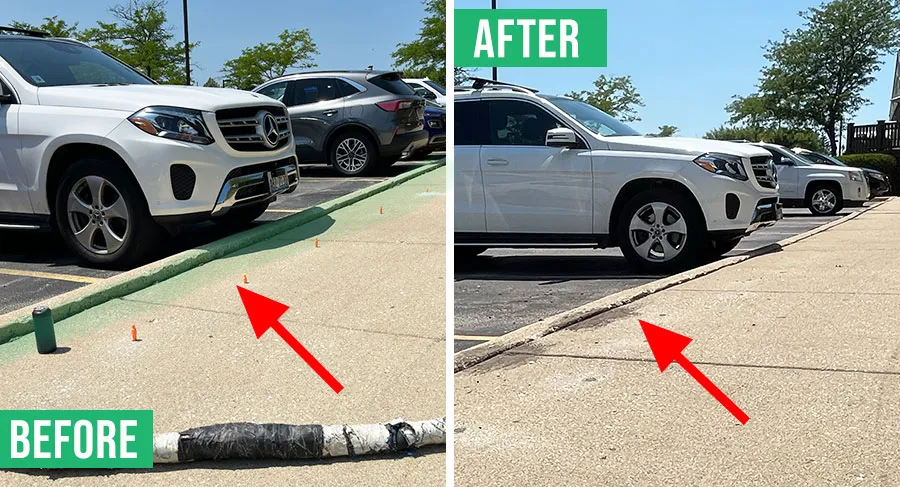

Before & After: Foam Concrete Lifting

Real Foamjection lifts on the kinds of slabs we fix for Carlyle homeowners. Small holes, no tear-out.

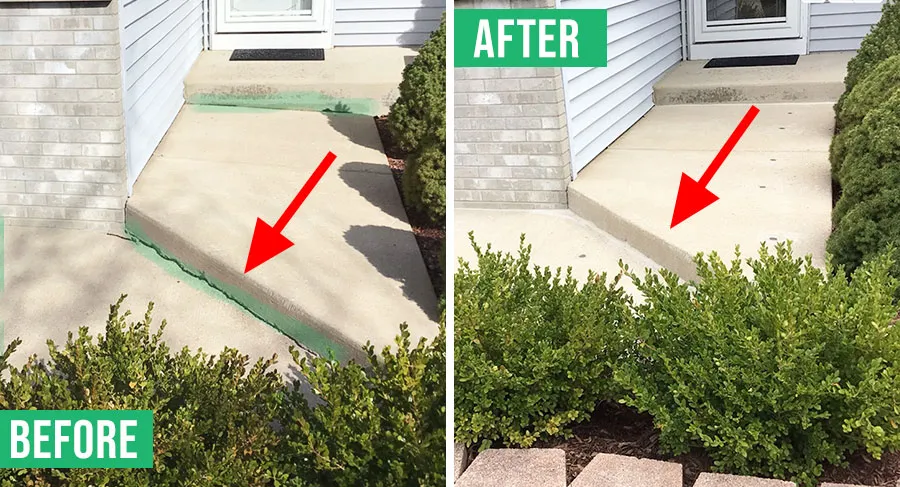

Before and after foam lifting of sunken concrete front steps, concrete step leveling in Carlyle, IL
Sunken front steps

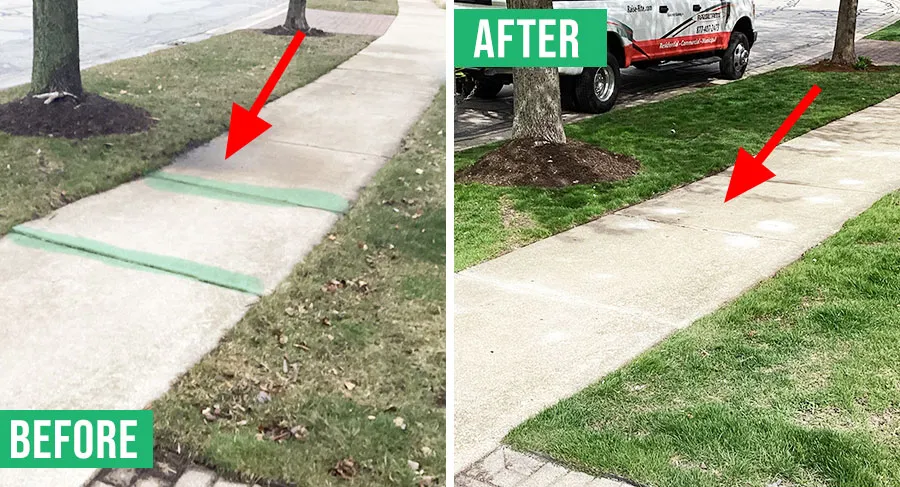

Before and after leveling a sunken sidewalk panel trip hazard, sidewalk leveling in Carlyle, IL
Sidewalk trip hazard
Before and after lifting a settled driveway slab back to level, driveway leveling in Carlyle, IL
Settled driveway slab

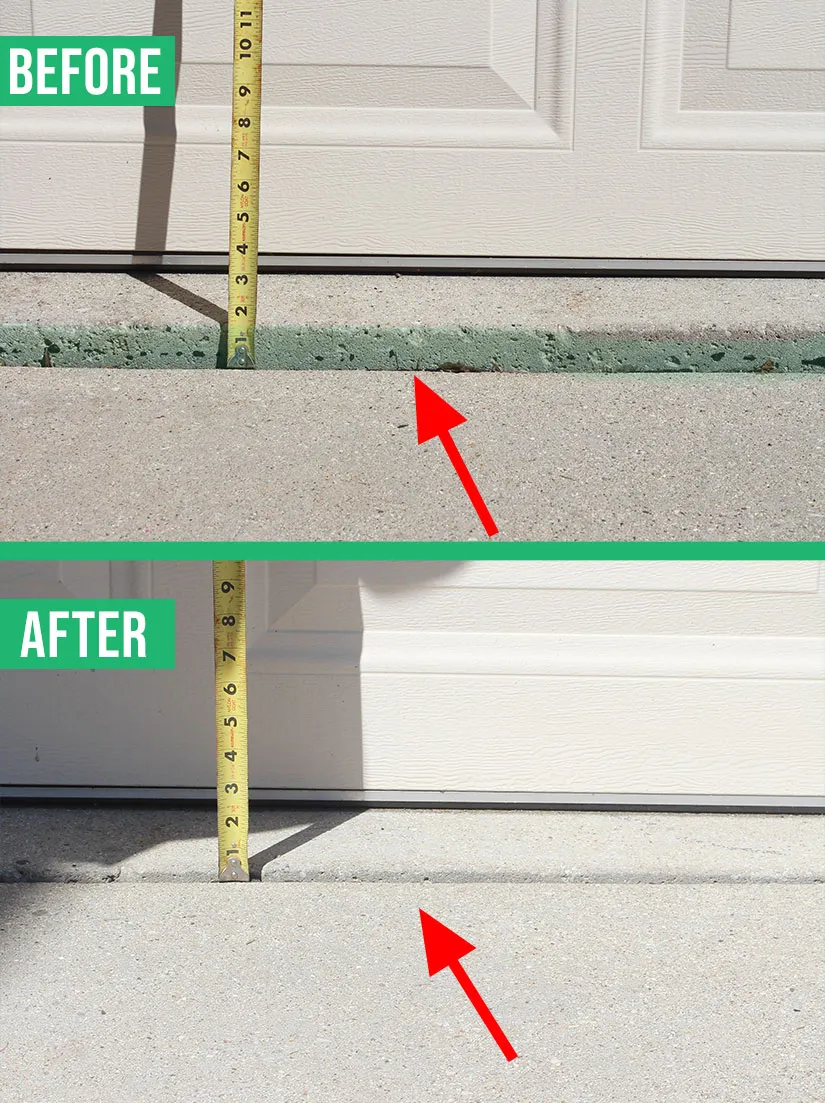

Before and after closing the gap between a sunken garage apron and floor, garage floor leveling in Carlyle, IL
Garage apron gap

Why Carlyle Homeowners Choose Foamjection

Foamjection is powered by HMI, which provides the equipment, training and systems behind every lift. Here’s what you can expect when you call us about your Carlyle concrete:

  • Free, no-pressure estimates
  • High-density polyurethane foam that fills voids and stabilizes weak soil
  • Small 5/8 inch injection holes, with no tearing out concrete
  • Most projects finished in hours and often ready to use the same day
  • Clean process with minimal disruption to your yard
  • Eco-friendly foam
  • Backed by HMI’s equipment, training and proven system
  • Warranty details explained clearly before work begins
The Foamjection team, powered by HMI, standing in front of a Foamjection concrete lifting truck

How Foam Injection Works

Concrete Raising near meDrill Small Holes

Our crew drills small 5/8″ holes in key areas of the slab.

Concrete lifting near meInject High-Density Polyurethane Foam

This is the core of polyurethane concrete lifting — the foam expands beneath the slab, fills voids, stabilizes loose soils, and delivers a controlled slab lifting process.

Concrete Leveling near mePatch & Use the Same Day

Once the slab reaches the correct height, holes are patched and the area is often ready to use within hours.

Edit Template

Get a Free Concrete Lifting Estimate in Carlyle

Tell us what’s sinking and where. A local pro will follow up with a free, no-pressure estimate.

Why Concrete Sinks in Carlyle, IL

Carlyle sits on the Kaskaskia River, just below the dam that holds back Carlyle Lake. The Illinois State Geological Survey’s surficial geology map of the Keyesport area, which covers the lake just north of town, shows what the ground is made of here. On the uplands, the top layer is loess, a fine, wind-blown silt that is typically 5 to 7 feet thick where it hasn’t eroded. Under it is glacial till that is denser and more pebbly than the silt above. In the Kaskaskia valley, the ground is mostly soft, fine-grained river silt, typically up to 25 feet thick in the valley under the lake. The U.S. Department of Agriculture describes this part of south-central Illinois the same way: loess over old glacial till with a high clay content, on nearly level to gently sloping till plains.

That mix is hard on concrete. On flat lots, water from roofs and driveways doesn’t drain away quickly. It soaks into the silt along slab edges, and the dense, clay-rich till below slows it from draining down. Wet silt loses strength, and where water keeps running under an edge, it carries the silt away and leaves a hollow. The concrete is still in one piece, but nothing is holding it up, so it drops. In the low areas near the river, slabs sit on soft river silt that can compress and settle under weight.

Foam fills those hollows and firms up the loose soil around them, and because it is light, it doesn’t add much weight to soft soil that’s already struggling.

Source: Illinois State Geological Survey, Surficial Geology of Keyesport Quadrangle, Clinton, Bond, and Fayette Counties, Illinois (2017)

Source: USDA Natural Resources Conservation Service, Ecological Site Description F113XY913IL, Central Claypan Areas (MLRA 113X)

Services That Fit Carlyle Homes

Every service below uses the same foam lifting process, sized to the slab. Not sure which one you need? Describe the problem on the estimate form and a local pro will help you figure it out.

Carlyle Concrete Lifting FAQ

Who maintains the public sidewalks in Carlyle?

The City of Carlyle’s Street & Alley Department says it is “responsible for the maintenance of Carlyle streets, alleys, sidewalks and drainage systems.” See the City of Carlyle Street & Alley Department page. If a public walk in front of your home is sunken or tilted, check with the city first. Driveways, front walks, steps and patios on your own property are yours to fix, and if the concrete is intact and just sunken, ask us whether lifting is an option before you replace it.

Does foam lifting work on Carlyle’s flat, silty soil?

Yes. The foam expands into empty spaces under the slab and helps stabilize soft, wet silt, which is the usual problem when water sits along a slab edge on a flat lot. Getting water to drain away from the slab helps the repair last.

What’s the difference between concrete jacking and foam jacking?

Concrete jacking, also called slabjacking or mudjacking, pumps a heavy cement slurry under the slab through larger holes. Foam jacking uses high-density polyurethane foam through small 5/8 inch holes. The foam is much lighter, cures quickly, and most slabs are ready to use the same day.

Should I fix my downspouts before lifting my driveway or walk?

It helps. On Carlyle’s flat lots, roof water that empties right next to a slab tends to sit there and soak in instead of running off. Extending downspouts and grading soil so water moves away from slab edges keeps the silt underneath from softening and washing out again after the concrete is lifted.

Do you serve areas outside Carlyle city limits?

Yes. Foamjection also serves nearby communities including Breese, Trenton, New Baden, Highland, Lebanon and Mascoutah. You’ll find links to each area at the bottom of this page.

How do I get a concrete lifting estimate in Carlyle?

Fill out the estimate form on this page or call 866-913-6519. Estimates are free and no-pressure, and warranty details are explained before any work begins.
